The shift register

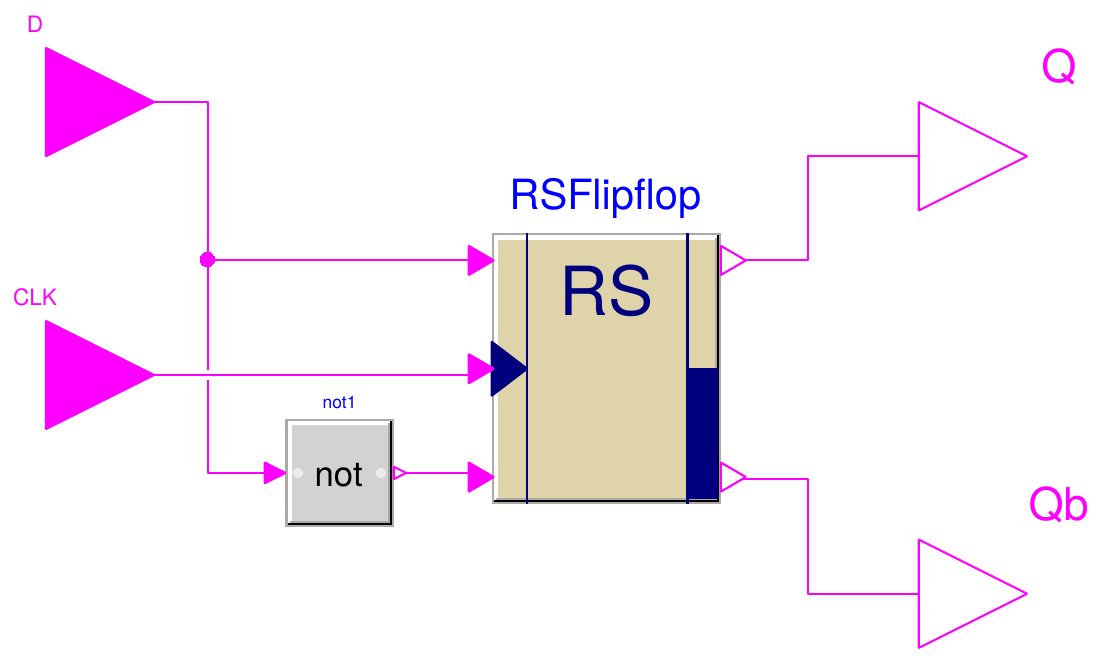

- D flip-flop
- simple memory block with one signal input (D)
and one trigger input (CLK)
- can be easily built from RS flip-flop

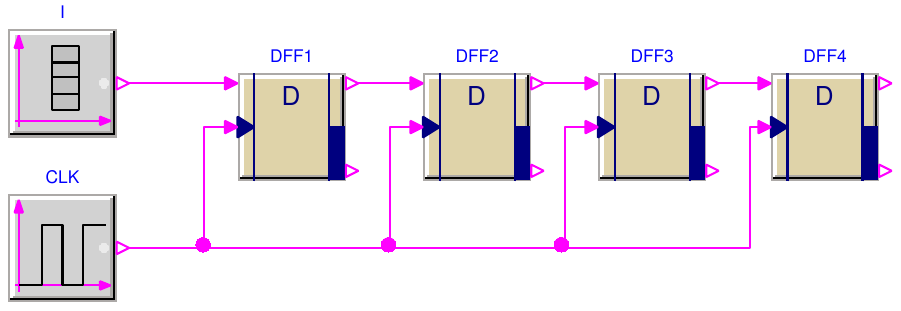

- several flip-flops in line → shift register
- input signal is "shifted" through the line
- Results
- in Simulink: as expected

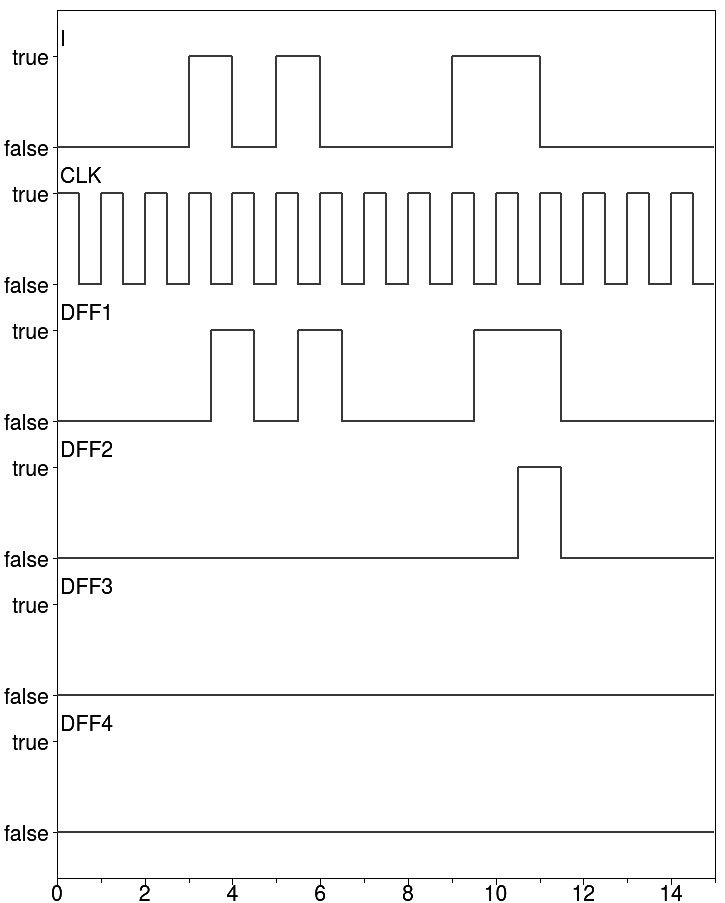

- in Modelica: single input "disappears"
- strange, because problematic "forbidden"
state is ruled out
