Solution of the problems
- Modelica Event loop
- makes behaviour better for static flip-flop
- destroys "triggered" behaviour
- is non-local, i.e. combines internal behaviour of the
blocks
- Synchronous library
- extension of the Modelica language and library
- invented for reliable state machines
- contains "clocked" signals that are only
defined at a clock tick (uniquely!)

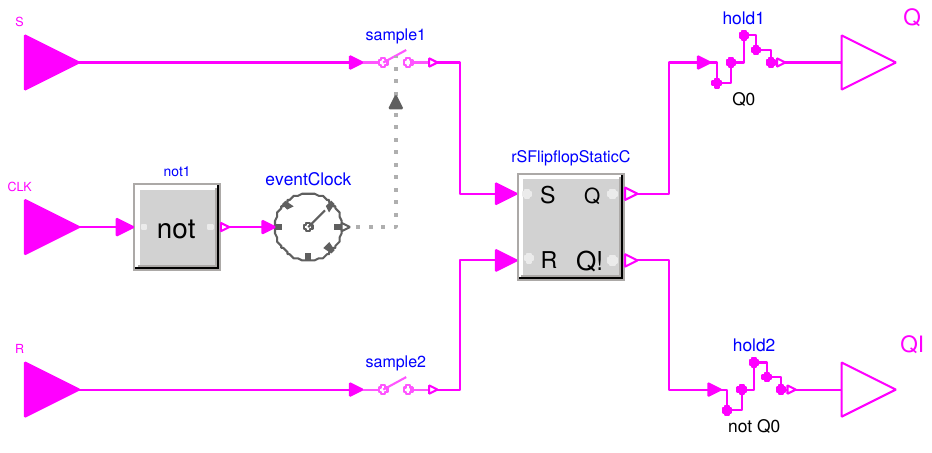

- Working triggered RS flip-flop
-
- EventClock creates a clock tick at a (positive) edge
of its input
- Sample and Hold blocks transfer between standard and
clocked signals

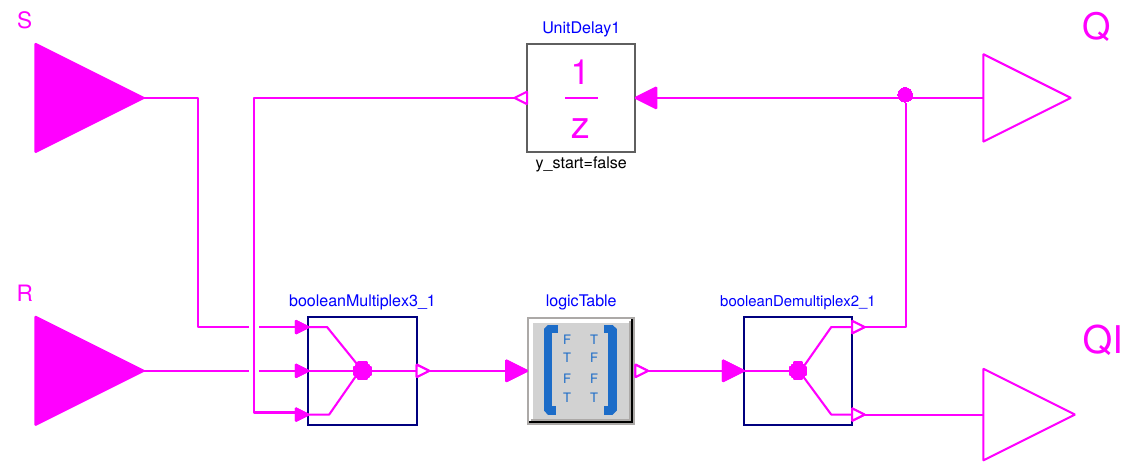

- UnitDelay returns value at the previous clock
tick
