Eigenschaft | alter Wert | neuer Wert |
---|---|---|
FontSize | 12 | 16 |

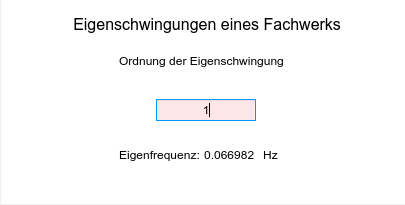

Text | Label | Eigenschwingungen eines Fachwerks |
BackgroundColor | hellgrau | z.B. weiß ([1.0 1.0 1.0]) |
Element | Eigenschaft | alter Wert | neuer Wert |
---|---|---|---|
Label2 | Text | Label2 | Ordnung der Eigenschwingung |
Label2 | BackgroundColor | hellgrau | weiß |
Label3 | Text | Label3 | Eigenfrequenz: |
Label3 | BackgroundColor | hellgrau | weiß |
Label4 | Text | Label4 | -1.234567 |
Label4 | BackgroundColor | hellgrau | weiß |
Label5 | Text | Label5 | Hz |
Label5 | BackgroundColor | hellgrau | weiß |
EditField | Value | 0 | 1 |
EditField | HorizontalAlignment | rechts | mittig |
EditField | BackgroundColor | weiß | rosa (1.0, 0.9, 0.9) |
app | Objekt app mit allen UI-Komponenten |
event | event-spezifische Informationen |
truss = loadTruss("bruecke"); [M, C] = createMatrices(truss); [Phi, freq] = computeEigenvalues(M, C); modeNr = app.EditField.Value; if (1 <= modeNr) && (modeNr <= 2*truss.N) fe = freq(modeNr); sFreq = sprintf("%8.6f", fe); % Eigenfrequenz als String app.Label4.Text = sFreq; end
truss = loadTruss("bruecke"); [M, C] = createMatrices(truss); [Phi, freq] = computeEigenvalues(M, C); % Setze Frequenz für Startwert 1 fe = freq(1); sFreq = sprintf("%8.6f", fe); app.Label4.Text = sFreq;

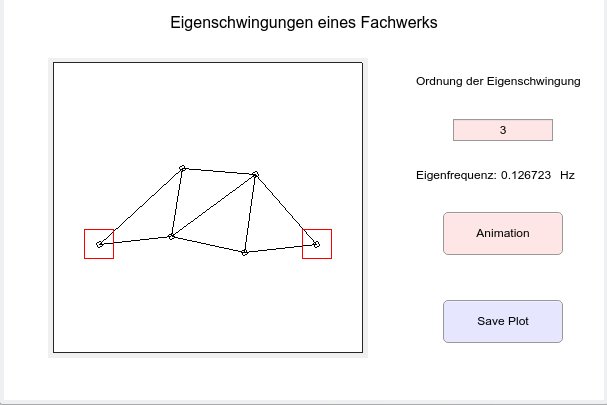

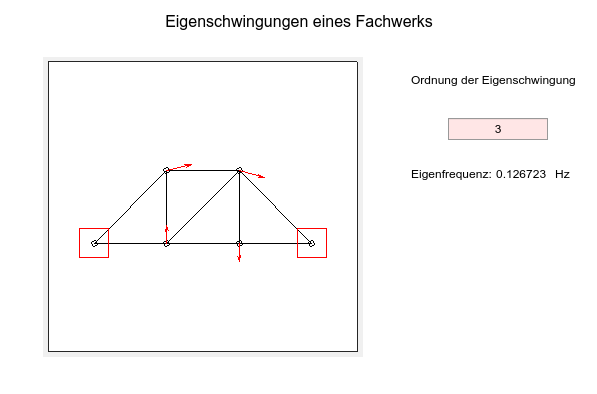

modeNr = app.EditField.Value; if (1 <= modeNr) && (modeNr <= 2*app.Truss.N) xe = app.Phi(:, modeNr); plotModeAnimation(app.UIAxes, xe, app.Truss, 4); plotTruss(app.UIAxes, app.Truss) plotMode(app.UIAxes, xe, app.Truss); end
