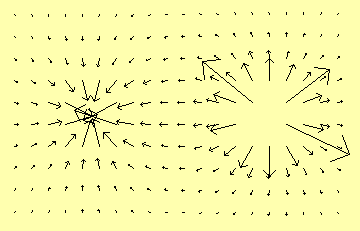

View that represents a vector field by drawing arrows at regular grid points. If the length of an arrow is larger than a given limit, the arrow is hidden. Optionally a marker is shown instead.
Properties:
| VectorField model | vector field to display |
| int nGridX, nGridY | number of grid points in x and y direction |
| int padding | pixel width of padding space around the grid points |
| double vectorScale | pixel length of an arrow representing a vector of unit length |
| Color arrowColor | color of the arrows |
| double maxArrowLength | maximal length of arrows, longer arrows are not shown |
| boolean showMarker | if true, markers are shown at grid points where the arrows are too large |
| Color markerColor | color of the optional markers |
Methods:
| void update() | redraw all arrows |
