The Release Queue

• New graphical component Release Queue:

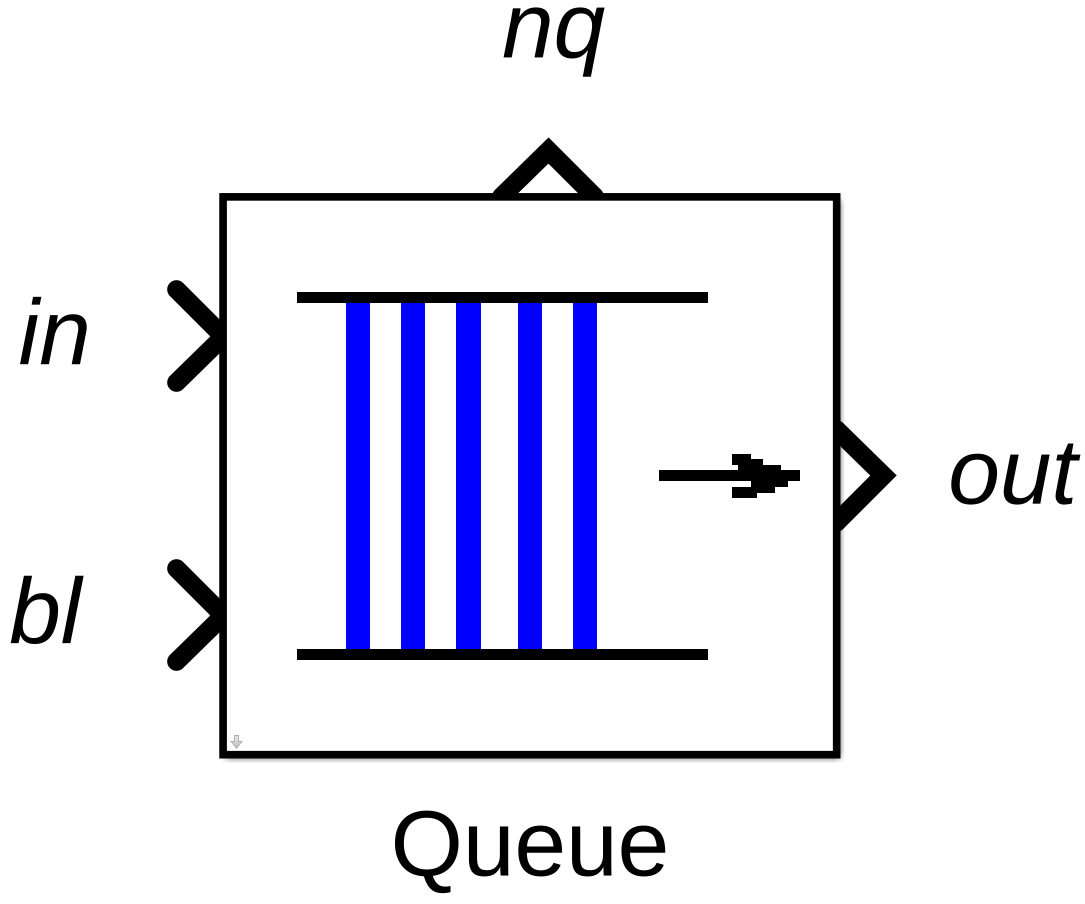

  • based on standard push queue
    •

    • in	entity input
      out	entity output
      bl	sets blocking status
      nq	outputs number of entities in the queue

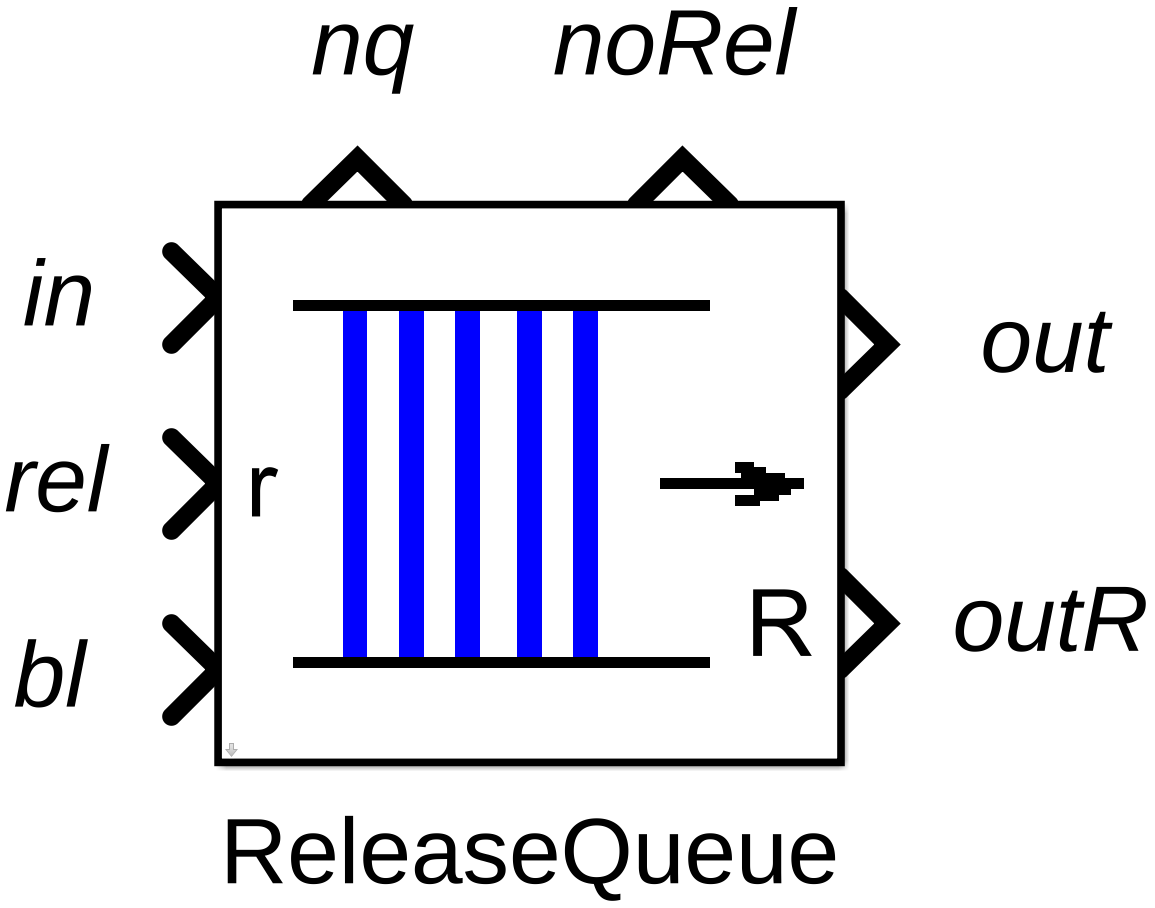

  • extension
    •

    • rel	defines entities to leave immediately
      outR	output of released entities
      noRel	signals, when no entities are released

• Release process:
  • control entity with attribute (NAME, VALUE) enters
  • entities with this attribute (name and value) are released
  • more than one → combined in one batch entity
  • special attribute ("queuePosition_", NR)
    • releases entity at this position in queue
    • NR < 0 → counting from the back of the queue
